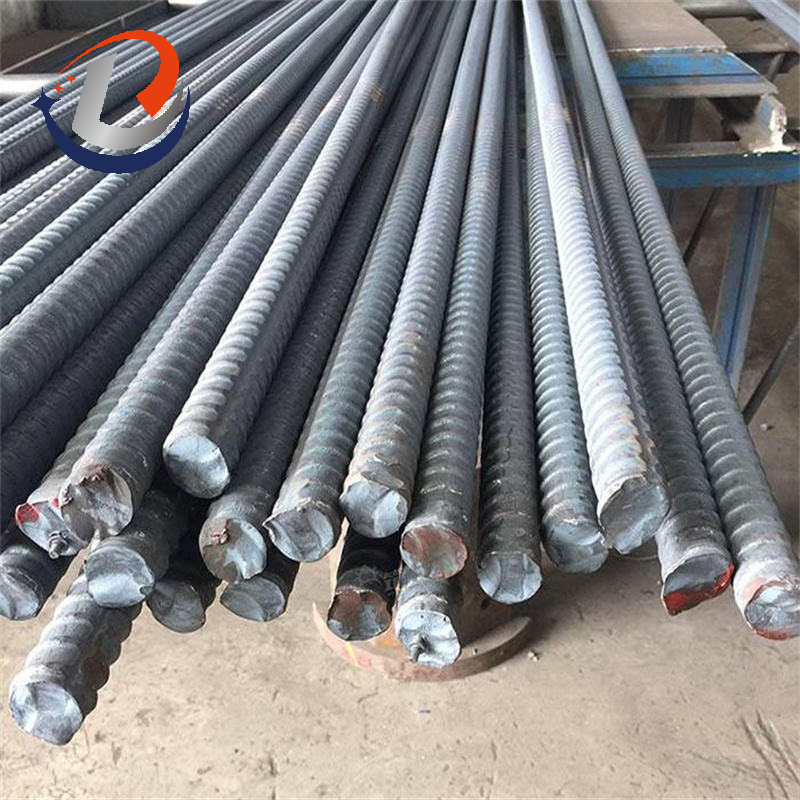

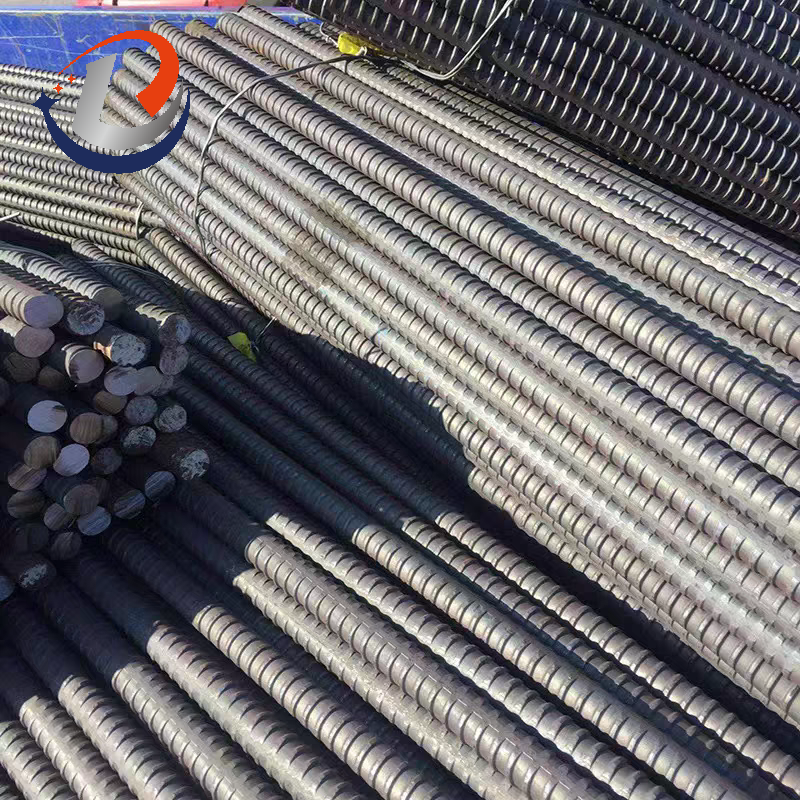

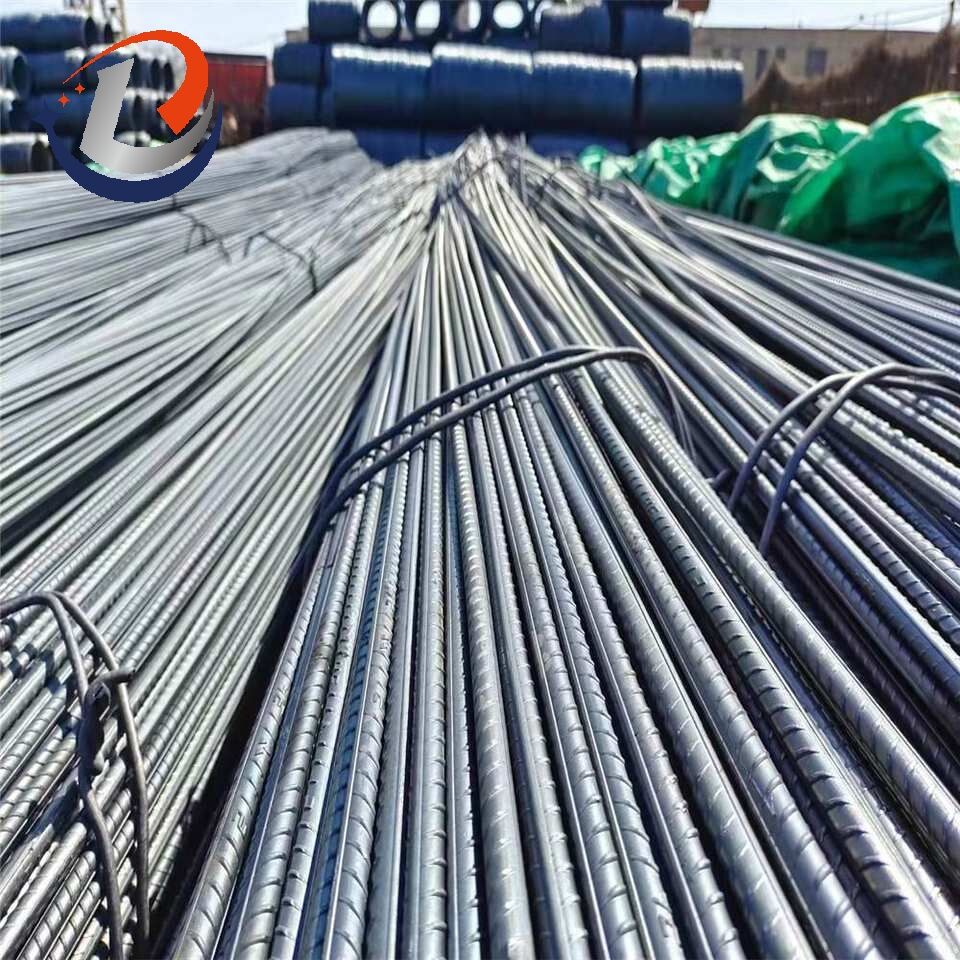

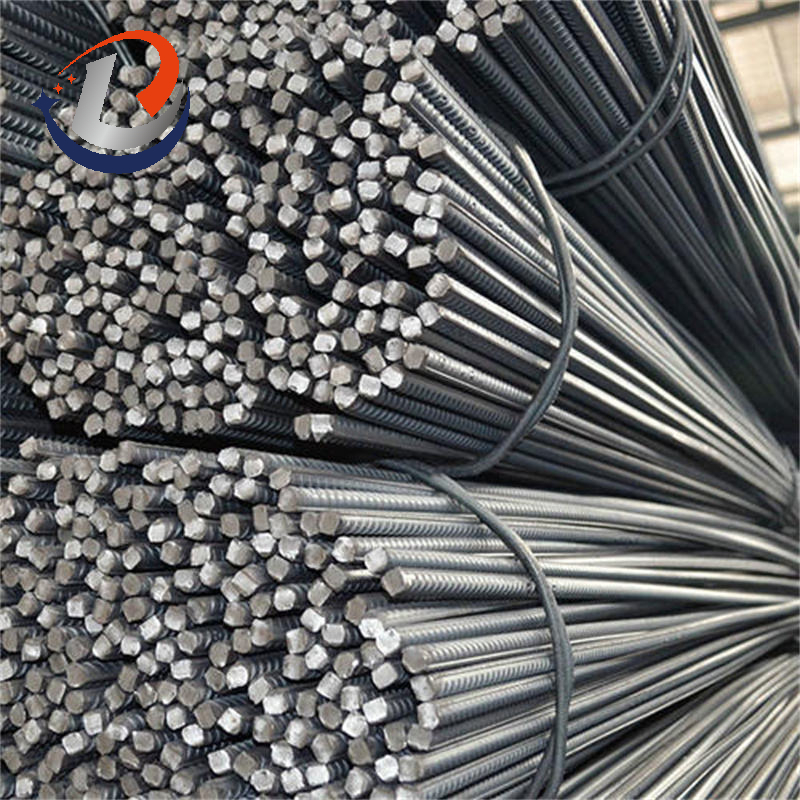

HRB500 Steel Rebar
Rebar is a common name for hot-rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar consists of HRB and the minimum yield point of the grade. H, R, and B are the initials of three words: Hotrolled, Ribbed, and Bars. Reinforcing bars are ribbed steel bars on the surface, also known as ribbed steel bars. Usually, there are two longitudinal bars and transverse bars evenly distributed along the length. The shapes of transverse ribs are spiral, herringbone and crescent.
Phone : +86 13256191295
Email : sales04@dxsteelgroup.com
Wechat : +86 13256191295
Whatsapp : +86 13256191295
MOQ : 1 ton
Contact Us

Product Description

Features:

  1. Good pressure resistance: Made of steel, steel needs to be subjected to high temperatures of several hundred degrees, and its pressure resistance is above 500 MPa.

  2. Strong impact resistance: A certain amount of vanadium is added to steel, which can resist high impact and has good anti-seismic effect.

  3. Easy welding: Rebar is made by high-temperature hot pressing, and the carbon content is reduced, which reduces the strength of welding.

Applications:

  1. In building structures, rebar is often used to reinforce and connect beams, columns, plates and other components in reinforced concrete structures.

  2. In civil engineering, rebar is widely used in bridges, tunnels and highways as a reinforcement and connection material.

  3. In railway engineering, rebar is used to fix and connect railway tracks to ensure smooth operation of the line.

  4. It is also used for support and reinforcement of mining projects, as well as the construction of various infrastructures, such as hydropower stations, nuclear power plants, etc.


Product NameDeformed Steel Rebars,Rebar
MaterialHPB300,HRB335,HRB400e,HRB500e,B500b, etc.
Size6mm,8mm,10mm, 12mm, 13mm, 14mm, 16mm, 20mm, 22mm, 25mm, 30mm, 32mm, 40mm,50mm
Length5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques
StandardBS4449-2005,GB1449.2-2007,JIS G3112-2004, ASTM A615-A615M-04a,
GradeGrade 40, Grade 60, Grade 80
Section ShapeSpiral Shap,Herringbone Shap,Crescent Shap
TechniqueSteel Rebar Iron Rod
PackingBundle, or with all kinds of colors PVC or as your requirements
Surface Treatment1. Galvanized2. PVC,Black and color painting3. Transparent oil,anti-rust oil4. According to clients requirement
OriginChina
CertificatesISO9001-2008
Delivery TimeUsually within 3 days after receipt of advance payment
MOQ1 Ton

Mechnical Properties of Steel Rebars
StandardGradeNominal Diameter mmYield Strength MPa (min.)Tensile Strength MPa (min.)Tensile to Yield Ratio (min.)Elongation in 200mm (min.)Elongation (A5) (min.)Agt % (min.)
SASO ASTM A615M280(40) 12 280 420 N/A12 N/AN/A

280(40) 14 - 18 280 420 N/A12 N/AN/A

420(60) 12 - 20 420 620 N/A9 N/AN/A

420(60) 25 420 620 N/A8 N/AN/A

420(60) 32 - 40 420 620 N/A7 N/AN/A

520(75) 12 - 25 520 690 N/A7 N/AN/A

520(75) 32 - 40 520 690 N/A6 N/AN/A
SASO ASTM A706M420(60) 12 - 20 420-540 550 1.25 14 N/AN/A

420(60) 25 - 36 420-540 550 1.25 12 N/AN/A

420(60) 40 420-540 550 1.25 10 N/AN/A
BS 4449460 B12 - 40 460 N/A1.08 N/A14 5
BS 4449B500B12 - 32 500 N/A1.08 N/AN/A5
GCC Standard GS06/IS0 6935-2B400BR12 - 40 400 N/A1.08 N/A14 5

B400BWR12 - 40 400 N/A1.08 N/A14 5

B500BR12 - 32 500 N/A1.08 N/A14 5

B500BWR12 - 32 500 N/A1.08 N/A14 5
Chemical composition of Steel Rebars








StandardGradeChemical composition % (maximum)








C SiMnS P N CuC.E.V
SASO ASTM A615M280/420/520 (40/60/75) ... ... ... ... 0.06 ... ... ...
SASO ASTM A706M420(60) 0.3 0.50 1.5 0.045 0.035 ... ... 0.55
BS 4449460 B0.25 ... ... 0.05 0.05 0.012 ... 0.51
BS 4449B500B0.22 ... ... 0.05 0.05 ... 0.80 0.50
GCC Standard GS06/IS0 6935-2B400BR / B500BR... ... ... 0.06 0.06 ... ... ...

B400BWR / B500BWR0.22 0.60 1.60 0.05 0.05 0.012 ... 0.50
Linear Mass and Number of Bars In Bundles
Diameter (mm)Nominal linear mass kg/mTolerance in linear mass (maximum)Tolerance in linear mass (maximum)Tolerance in linear mass (maximum)Number of 12 mlong bars in a bundle of nominal weight of 2 tons.


ASTM A615BS 4449:2005GCC Standard GS06/ISO 6935-2/2007
12 0.888 –6% ±4.5%±6%188
14 1.210 –6% ±4.5%±5%138
16 1.580 –6% ±4.5%±5%105
18 2.000 –6% ±4.5%±5%84
20 2.470 –6% ±4.5%±5%68
22 2.980 –6% ±4.5%±4%56
25 3.850 –6% ±4.5%±4%44
28 4.830 –6% ±4.5%±4%34
32 6.310 –6% ±4.5%±4%26
36 7.990 –6% ±4.5%±4%21
40 9.870 –6% ±4.5%±4%17
